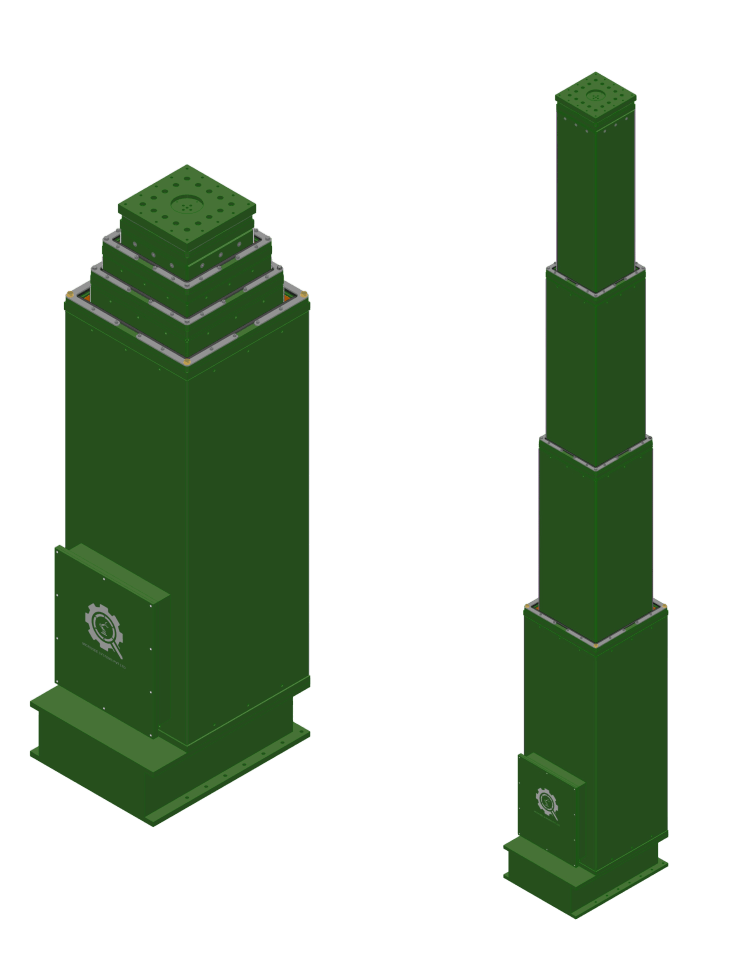

ELECTRO-MECHANICAL MAST
- Payload weight : 360 kg. maximum
- Self Weight of electromechanical mast : 220 kg. approx.
- Retracted height:-1500 mm maximum (1.50 meter)
- Extended height : 5000 mm (5 meter) maximum
- Actuation mechanism used : lead screw & nut Structure and telescoping guides suitable for lifting payload weight of 360 kg and wind speed of 60 kmph operational and 100 kmph survival in extended condition.
- Deflection of mast at extended condition less than 2° in fully loaded condition and 60 kmph wind speed.
- Rotational twist : maximum 0.5° maximum under 10 kg-m of twisting torque.
- Time for extending and retraction : 5 minutes maximum in motorised condition.
- Manual cranking for extension and retraction is provided.
- Power supply : 230VAC, 50Hz, 1 Phase
